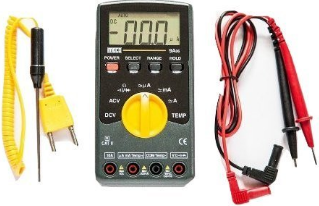

Meco 9A06 Multimeter with Temperature Measurement Supplier




DC Voltage Ranges

  • DC Voltage - 200mV/2/20/200/1000V
  • Accuracy -  ± (0.5%rdg + 4dgt) on 200mV & 2V, ± (0.7%rdg + 4dgt) on 20V & 200V, ± (1%rdg + 4dgt) on 1000V


AC Voltage Ranges

  • AC Voltage - 200mV/2/20/200/750V (200mV Manual only)
  • Accuracy - ± (1.0%rdg + 8dgt) on all ranges except  ± (1.5%rdg + 8dgt) on 750V


DC Current Ranges

  • DC Current - 200/2000mA/20/200mA/2/10A
  • Accuracy - ± (1.5%rdg + 4dgt)


AC Current Ranges

  • AC Current - 200/2000mA/20/200mA/2/10A
  • Accuracy  -  ± (2.2%rdg + 4dgt)


Resistance Ranges

  • Resistance - 200 ohm / 2 / 20 / 200k- ohm / 2 / 20 M-ohm
  • Accuracy - ± (0.7%rdg + 4dgt) on all ranges except ± (1.2%rdg + 4dgt) on 2M-ohm & ± (2.5%rdg + 4dgt) on 20M-ohm


Temperature Ranges

  • Temperature - -200 C~13000 C/-40 F~19990 F
  • Accuracy - ± (2%rdg + 4dgt)


Accessories :

  • Supplied with Pair of Test Leads
  • Battery (installed)
  • K Type Thermocouple (upto 260 C)
  • 0 Inst. Manual & Carrying Case

Specifications

Brand Meco
Model Meco 9A06
Display Type Digital
Sp. Function Diode Test, Audible Continuity, Data Hold
Power Two 1.5V ‘AA’ Battery
Low Battery Indicator Present
Battery Life 200 hours typical
Dimensions 161 x 86 x 43 mm (approx.)
Weight 250gms Including Battery (approx.)
Measuring Catagory CAT II
