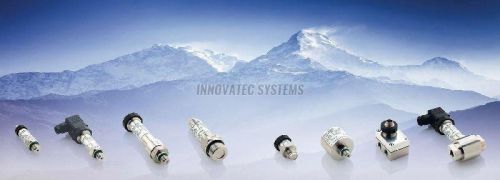

Pressure Transmitters

Application area : The differential pressure transmitter VEGADIF 65 can be used universally for the measurement of liquids, gases and vapours. Typical applications are level measurements in pressurized vessels as well as flow measurements in combination with DP flow elements. Further applications are pressure monitorings on filters as well as density and interface measurements.

Materials, wetted-parts

• 316L
• Alloy C22 (2.4602)
• Alloy 400 (2.4360)
• Tantalum
• Alloy C276 (2.4819)
• Rhodium>Gold>Alloy

Seal-material

• EPDM
• FKM
• FFKM
• Copper

Housing-material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection-rating

• IP 66/IP 68 (0.2 bar)
• IP 66/IP 67
• IP 66/IP 68 (1 bar)

Output

• 4 - 20 mA/HART
• Profibus PA
• Foundation Fieldbus
• 4 - 20 mA

Your benefit

• Measurement of extremely small differential pressures through high precision measured value detection
• High reliability through integrated overload diaphragm
• Versatile use through a variety of measuring ranges and process fittings

Function : The sensor diaphragms are deflected by the acting pressures. The filling oil transmits the pressure to a semiconductor measuring bridge. The output signal, which is dependent on the differential pressure, is measured and further processed.

Materials : The process fitting is made of steel C22.8 (1.0460), Alloy or stainless steel 316L. The process diaphragm is available in 316L and high resistance materials Alloy C276 (2.4819), Alloy 400 (2.4360), Tantalum as well as Rhodium/Gold on 316L.

Housing versions :  The housings are available as single chamber or double chamber version in plastic, stainless steel or aluminium. They are available in protection ratings up to IP 68 (25 bar) with external electronics.

Electronics versions : The instruments are available in different electronics versions. Apart from the two-wire electronics with 4 - 20 mA or 4 - 20 mA/HART, two purely digital versions with Profibus PA and Foundation Fieldbus are available.

Application Area : The VEGABAR 14 pressure transmitter can be used universally for measurement of gases, vapours and liquids. The small pressure transmitter offers maximum reliability and operational safety. The VEGABAR 14 is an economical solution for a number of applications in all industries.

Your benefit

• Low maintenance costs thanks to wear-free ceramic measuring cell
• High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
• Price-favourable version with small mounting dimensions

Function :  The heart of the pressure transmitter is the pressure measuring cell transforming the pressure into an electrical signal. This pressuredependent signal is convereted by the integrated electronics into a standardized output signal. Sensor element is the ceramic CERTEC® measuring cell with excellent long-term stability and high overload resistance.

Materials :  The wetted parts of the instrument are made of 316L, Duplex, PVDF or sapphire-ceramic®. The process seal is available in FKM, EPDM and FFKM

Housing versions :  The housing is equipped with plug connector according to ISO 4400, M12 x 1 or with direct cable outlet. It is available with protection ratings up to IP 67.

Electronics versions : The instrument has a 4 - 20 mA signal output.

Materials,-wetted-parts

• PVDF
• 316L
• Duplex (1.4462)

Seal-material

• EPDM
• FKM
• FFKM

Protection-rating

• IP 67
• IP 65
• IP 68 (0.2 bar)
• IP 68 (0.5 bar)

Application area : The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

• Maximum dependability and safety through proven technology
• High reliability through vacuum resistant version
• Universal use due to welded measuring cell

Function :
The heart of the pressure transmitter is the completely welded, metallic measuring cell transforming the pressure via the integrated electronics into a standardized output signal.

For measuring ranges up to 40 bar, a piezoresistive sensor element with internal transmission liquid is used. From 100 bar a strain gauge sensor element on the rear of the stainless steel diaphragm is used. This dry system operates without additional isolating liquid.

The sensor element METEC® is used with temperature ranges up to 200 °C and larger process fittings,. This element consists of the ceramic-capacitive CERTEC® measuring cell and a special, temperature-compensated chemical seal system.

Materials, wetted-parts

• 316L
• Alloy C22 (2.4602)
• 316Ti (1.4571)
• Alloy C4 (2.4610)

Hygenic-fittings

• Clamp ≥ 1" - DIN32676, ISO2852
• Slotted nut ≥ DN25 - DIN 11851
• Varivent ≥ DN25
• hygienic fitting with tension flange DN32
• Hygienice flange connection ≥ DN50 DIN11864-2
• SMS 1145 DN51
• SMS DN38
• Hygienic fittings ≥ DN33 - DIN11864-1-A
• Hyg. collar clamp adapter DN40PN40 DIN11864-3-A
• Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53
• Swagelok VCR screwing
• Varivent G125

Seal-material

• EPDM
• FKM
• FFKM
• FEPM

Housing-material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection-rating

• IP 66/IP 67
• IP 66/IP 68 (1 bar)
• IP 68 (0.2 bar)
• IP 66/IP 68 (25 bar)
• IP 69 K

Output

• Profibus PA
• Foundation Fieldbus
• 4 - 20 mA
• 4 - 20 mA/HART - two-wire
• Modbus
• Slave electronics for electronic differential pressure

The pressure transmitter VEGABAR 83 is ideal for level and pressure measurement of liquids and viscous products with high process pressure. With its metallic measuring cell, the instrument delivers excellent measurement accuracy, even under a vacuum.

This pressure transmitter is the first choice for process pressure or level measurement in processes with high pressure, e.g. for

• Circuit pressure measurement in hydraulic pumps
• Pipeline pressure measurement
• Bitumen level measurerment in asphalt mixing plants
• Storage tank level measurement, e.g. for milk in dairies

Materials : The process fitting of the instrument is made of 316L or Alloy C276 (2.4819), the process diaphragm of Alloy C276 (2.4819). FKM, FFKM and EPDM.

Housing versions : The housings are available as single chamber version in plastic, aluminium or stainless steel. They are available in protection ratings up to IP 68 (25 bar) with external electronics as well as in IP 69K.

Electronics versions : Apart from the two-wire electronics with 4 - 20 mA or 4 - 20 mA/ HART, also purely digital versions with Profibus PA, Foundation Fieldbus and are available. In addition a version as Slave sensor is available for the electronic differential pressure measurement.

Adjustment

• Adjustment on the measurement loop : The adjustment of the instrument is carried out via the optional display and adjustment module PLICSCOM or via a PC with the adjustment software PACTware and corresponding DTM.
• Wireless adjustment via Bluetooth : The Bluetooth version of display and adjustment module enables a wireless connection to standard adjustment units. This can be smartphones/tablets with iOS or Android operating system or PCs with PACTware and Bluetooth USB adapter.
