Fluke 317 Digital Clamp Meter with Backlight Supplier

Home › Products › Digital Clamp Meter › Fluke 317 Digital Clamp Meter With Backlight Supplier

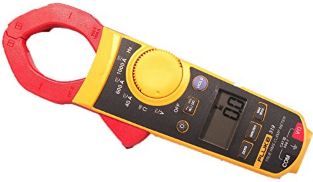

Fluke 317 Digital Clamp Meter with Backlight
Fluke 317 Digital Clamp Meter with Backlight
Business Type Supplier, Retailer, Wholesaler
Dimensions 6.39 In X 2.29 In X 1.20 In (162.4 Mm X 58.25 Mm X 30.5 Mm)
Digital Display 6000 count resolution
Low Battery Indication Displays a signal when the batteries are below their required voltage
Click to view more

Preferred Buyer From

Location Anywhere in India
Request to Call Send Enquiry

Product Details

IP Rating
IP40
Power Source
Three AAA IEC LR03 batteries
Clamp Opening Size
1.45 in (37 mm)
Jaw Diameter
1.45 in (37 mm)
Weight
Approximately 13.5 oz (384 g) (batteries included)
Auto Range
Available in Ohms
Safety
CE EN/IEC 61010-1 and IEC 61010-2-032 Measurement Category: 600V CAT III

The Fluke 317 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. The Fluke 317 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, and Frequency functions for testing motors, lighting, etc.

These affordable instruments combine a compact package with a strong feature set:

  • Special 40A high accuracy AC/DC high measure, 1.6% accuracy, 0.01A resolution
  • Small body and jaws fit perfectly in your hand and into tight places
  • Large, backlit display is easy-to-see in less than ideal conditions
  • In-rush current function (319) for measuring starting current for motors, lighting, etc.
  • Measuring current Frequency (319)
  • Resolution up to 0.01A and 0.1 V
  • Measures AC/DC current to 1000 A (319)
  • Measures AC/DC volts to 600 V
  • Resistance measurement to 4000 Ω
  • Continuity for quick checking of shorts
  • Auto-shut-off maximizes battery life so the meter works when you need it
  • Display hold function
  • One year warranty


The Meter ships with:

  • Test Leads
  • Soft Carrying Case
  • Three AAA batteries (Installed)
  • 317/319 User Manual

Yes! I am interested


Electrical Specifications

Current AC Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (50-60 Hz) {40 A}
   2.5% ± 8 digit (60-500 Hz) {40 A}
   1.5% ± 5 digit (50-60 Hz) {600 A}
   2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response  rms
Current DC Range  40.00 A, 600.0 A
Resolution  0.01 A, 0.1 A
Accuracy  1.6% ± 6 digit (40 A)
   1.5% ± 5 digit (600 A)
Voltage AC Range  600.0 V
Resolution  0.1 V
Accuracy  1.5% ± 5 digit (20-500Hz)
AC response  rms
Voltage DC Range  600.0 V
Resolution  0.1 V
Accuracy  1% ± 4 digit
Resistance Range  400.0 Ω, 4000 Ω
Resolution  0.1 Ω, 1 Ω
Accuracy  1% ± 5 digit
Continuity    ≤ 30 Ω
Inrush Integration time  N/A
Frequency Range  N/A
Accuracy  N/A
Trigger Level  N/A

Environmental Specifications

Operating Temperature  14°F to 122°F (-10 °C to 50 °C)
Storage Temperature  -40 °F to 140 °F (-40 °C to 60 °C)
Operating Humidity  Non condensing (< 50 °F) (< 10 °C)
 90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
 75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
 45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
 (Without Condensation)
Operating Altitude  1 mile (2000 meters) above mean sea level
Storage Altitude  7 miles (12,000 meters) above mean sea level
IP Rating  IP40
Vibration Requirements  Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
Drop Test Requirements  3 ft (1 m) drop test, six sides, oak floor
EMI, RFI, EMC  Instrument unspecified for use in EMC field ≥ 0.1 V/m
Temperature Coefficients  0.1x (specified accuracy)/ °C
 (<64 °F or > 82° F)
 (<18 °C or > 28 °C)
